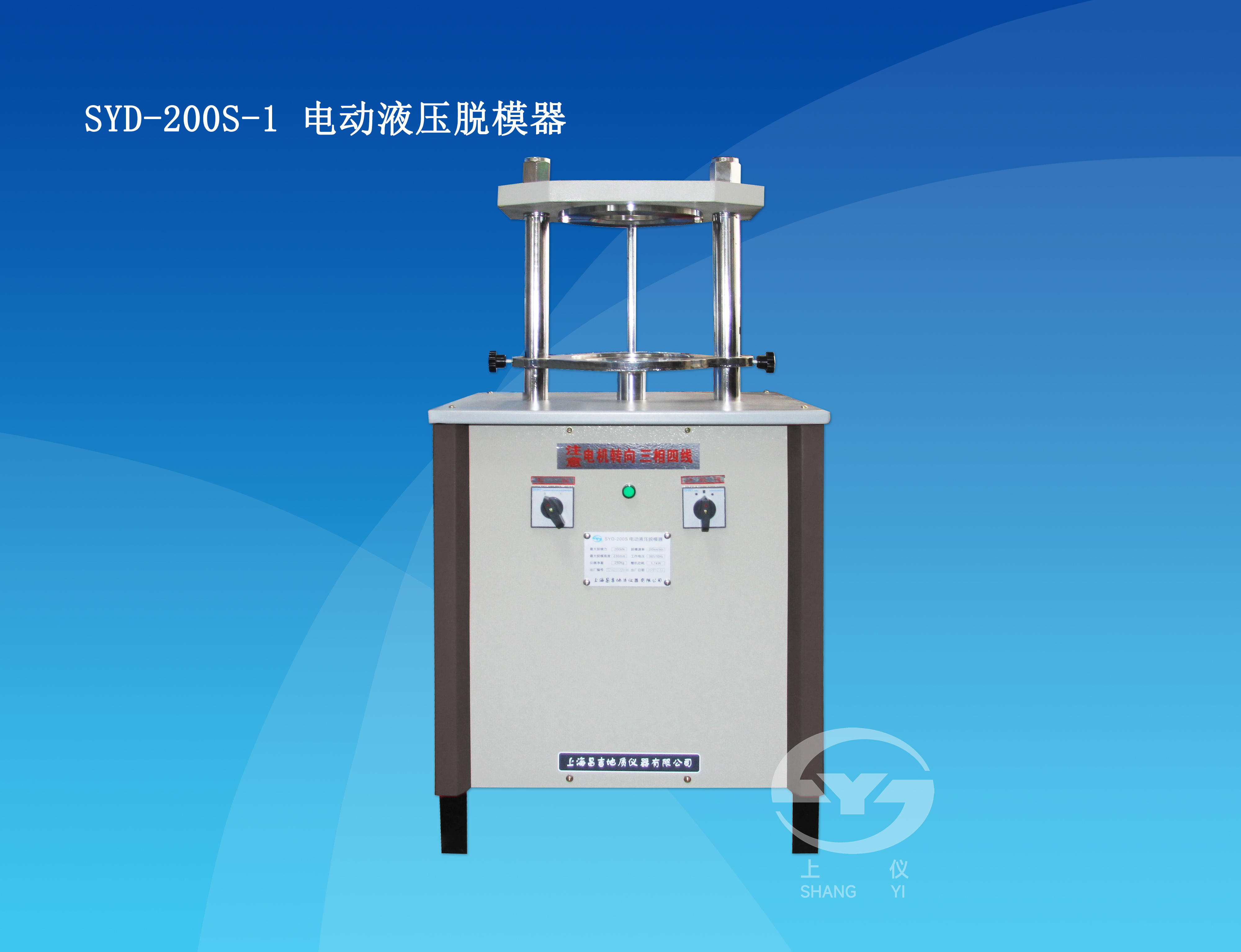

                                                SYD-200S Electric Hydraulic Pressure Ejector
Summary:
The instrument adopts the electric hydraulic transmission to load the pressure,the reasonable structure design,convenient operation,stable work and reliability.It’s mainly used in round specimen to demould,especial in asphalt mixture,cement mixture and higher density specimen by highway industries,constructions industries,universities and colleges,and scientific research institutions ect.laboratory.
It’s matched with our products SYD-0702,SYD-0702A,SYD-0702A-1 Marshall electric compactors.

I.Main technical characteristics
1. Multifarious specimens to demould
1) Marshall mold
Specimen dimension: Φ101.6 mm×63.5mm;Φ152.4 mm×95.3mm
2) Cement compression resistance mold
Specimen dimension: Φ150mm×150mm;Φ100×100mm;Φ50×50mm
3) Earthwork heavy(light) type compactor mold
Volume:2177cm³,997cm³
2. Effective demould and noiseless
3. All steel material,sturdy and durable.
4. Bi-direction work oil cylinder,free up and down

II.Main technical parameters and index
1.Peakload: 20T
2.Maximun stripper length: 240mm
3.Oil pump working pressure: 30MPa
4.Demoulding speed: 200mm/min
5.Motor power: 1.1kW
6.Power supply: AC380V/50Hz
7.Machine gross weight: 200kg
8.Outline dimension: 530mm×500mm×1050mm(L*W*H)
