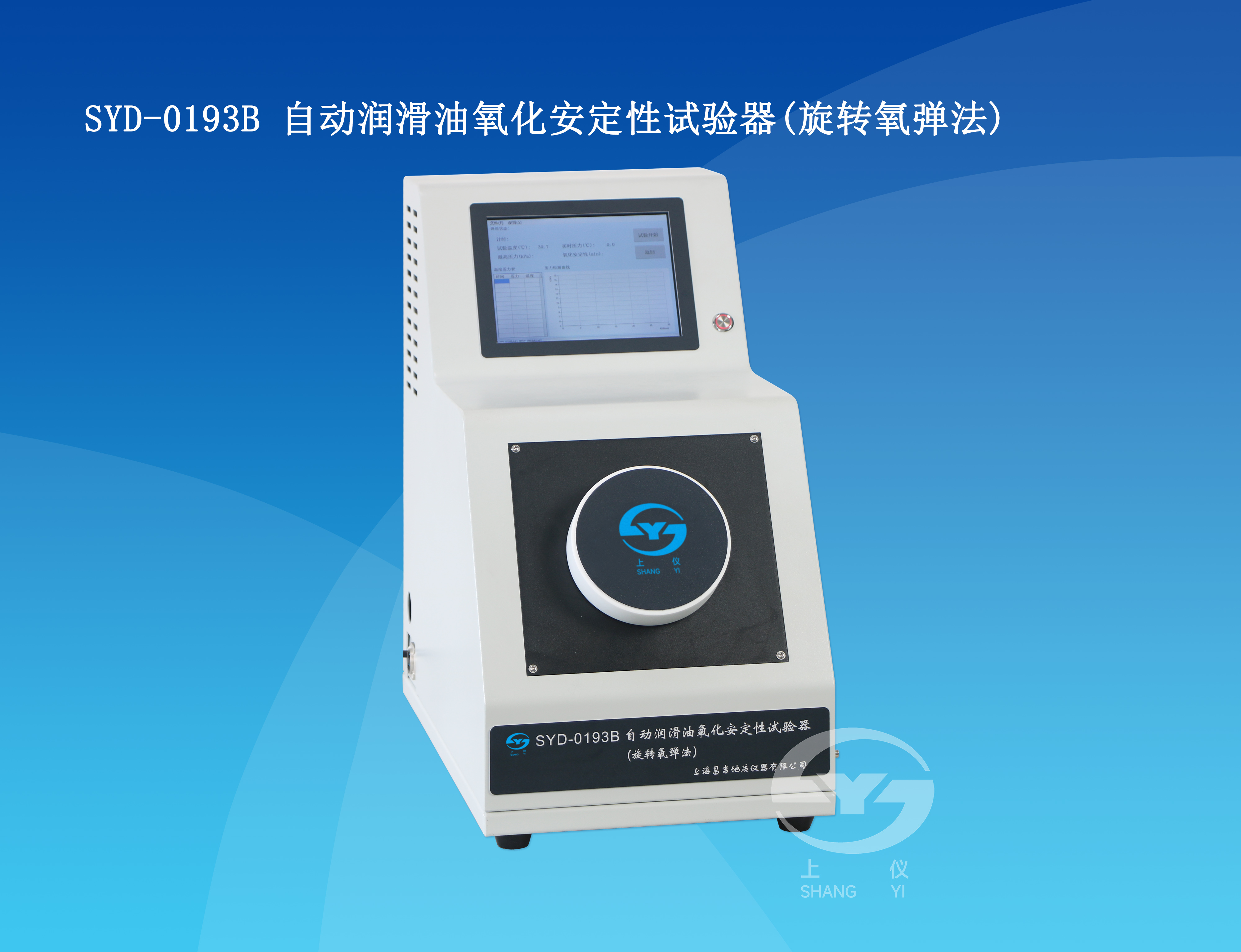

SYD-0193B Automatic Lubricating Oils Oxidation Stability Tester

Summary

The instrument is designed and made as per industrial standard of People’s Republic of China SH/T 0193 Lubricating oils-Determination of oxidation stability-Rotating pressure vessel method and ASTM D2272 Standard test Method for Oxidation Stability of Steam Turbine Oils by Rotating Pressure Vessel.

The instrument is used to determine the oxidation stability of steam turbine with the same composition (oil base oil and additive) .Also can be used to determine new mineral insulating oil containing 2，6-BHT.

I. Main technical features

1. Integrated design of the entire machine, desktop structure, high integration, using a touch screen industrial computer, the instrument is equipped with an electric winding machine for making catalyst coils.

2. The metal bath design eliminates the harm of oil fume and environmental pollution to the operator, and simplifies the operation.

3.During the experiment, the glass sample bottle rotates smoothly with low noise.

4. Built in air cooling system to improve the efficiency of continuous testing.

5.It can automatically or manually adjust the pressure, it is convenient to charge or discharge the oxygen.

6. It adopts a high-precision pressure sensor and temperature sensor, the test data is stable and reliable, with temperature overheating protection function.

II. Main technical specifications

1..Temperature control point for oil bath：140℃、150℃

2.Temperature control accuracy： ±0.1℃

3.Range for pressure sensor： (0～1.6)MPa

4.Pressure accuracy：±0.5%

5.Working mode：metal bath

6.Rotation speed： (100±5)r/min

7. Included angle between oxygen bomb and water level： 30°

8. Power supply： AC(220±10%)V, 50Hz；

9. Total power consumption： <1000W

10.Working Temperature: 15℃～28℃

11.Relative humidity: ≤85%

12.Dimension： 280mm×500mm×510mm

13.Net weight： about 30Kg
